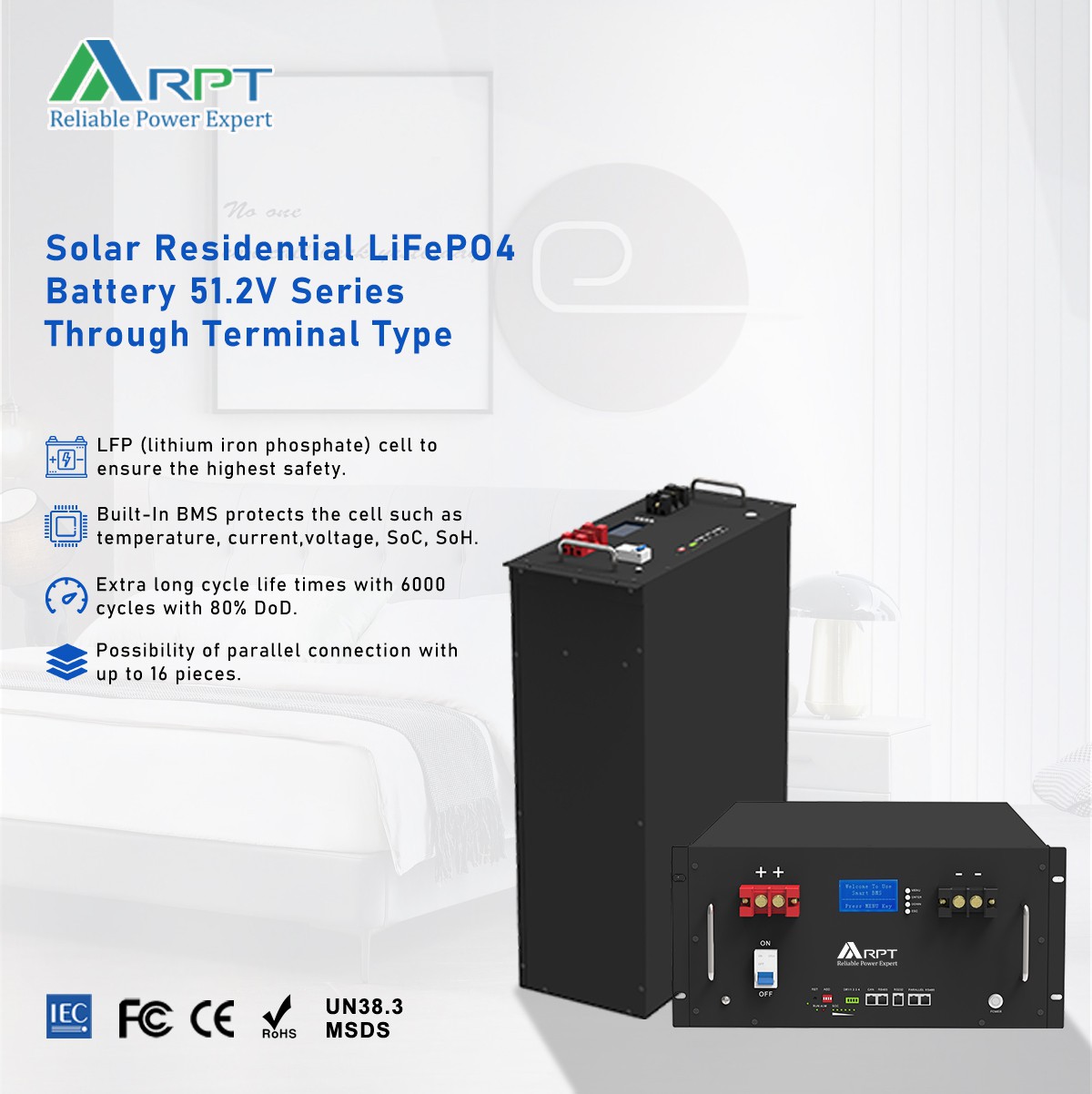

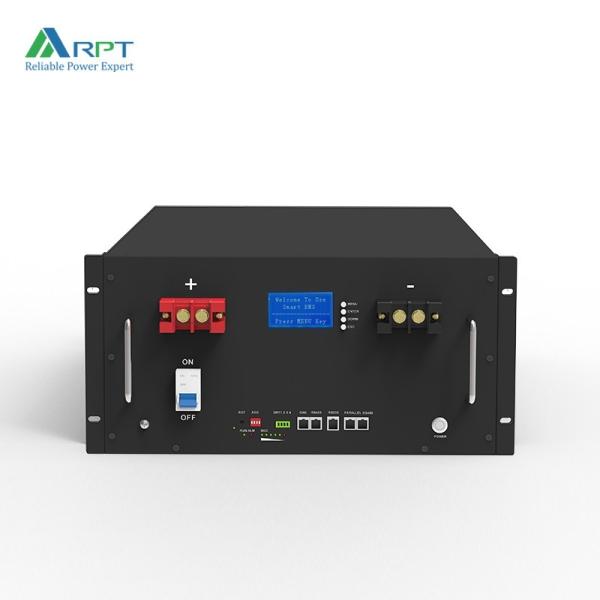

RPT's solar rack series offers a compact and efficient LiFePO4 Battery Energy Storage System designed for residential use. With its 51.2V rack model, it seamlessly integrates with your solar setup, storing surplus energy for use during peak demand or at night. Enjoy enhanced safety, reliability, and sustainability with Solar Rack Series - your trusted partner in residential energy storage.
Product Features:
1. Rack-Model Design: Rack-mounted configuration allows for easy installation in residential environments, optimizing space utilization.
2. High Energy Density: Utilizes LiFePO4 battery technology to provide high energy density, maximizing storage capacity within the rack.
3. Modular and Scalable: Modular design enables scalability, allowing homeowners to expand their energy storage capacity as needed.
4. Reliable Backup Power: Provides backup power during grid outages, ensuring uninterrupted operation of essential appliances and devices.
5. Integrated Battery Management System (BMS): Built-in BMS ensures safe and efficient operation by monitoring battery parameters and protecting against overcharging, over-discharging, and other potential risks.
6. User-Friendly Interface: Intuitive interface allows for easy monitoring of battery status, charge level, and system performance.
7. Seamless Integration: Compatible with most solar energy systems, inverters, and other renewable energy sources, facilitating seamless integration into existing setups.
8. Smart Connectivity: Optional smart features enable remote monitoring and control via mobile app or web interface, enhancing convenience and accessibility.
9. Long Cycle Life: Designed for durability and longevity, offering a high number of charge and discharge cycles for extended service life.
10. Energy Efficiency: Maximizes energy utilization and minimizes waste through efficient charge and discharge processes, helping to reduce overall energy costs.
Parameter
| Items | LFP 51.2V100Ah | LFP 51.2V200Ah |
| Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah |
| Stored Energy | 5120Wh | 10240Wh |
| Dimension(L*W*H) | 480mm*442mm*155mm | 600*442*226 |
| Weight(approx.) | 45kg | 85kg |
| Installation Type | Rack Mounted | Rack Mounted |
| Certification | IEC62619,CE,RoHS,UN38.3 |

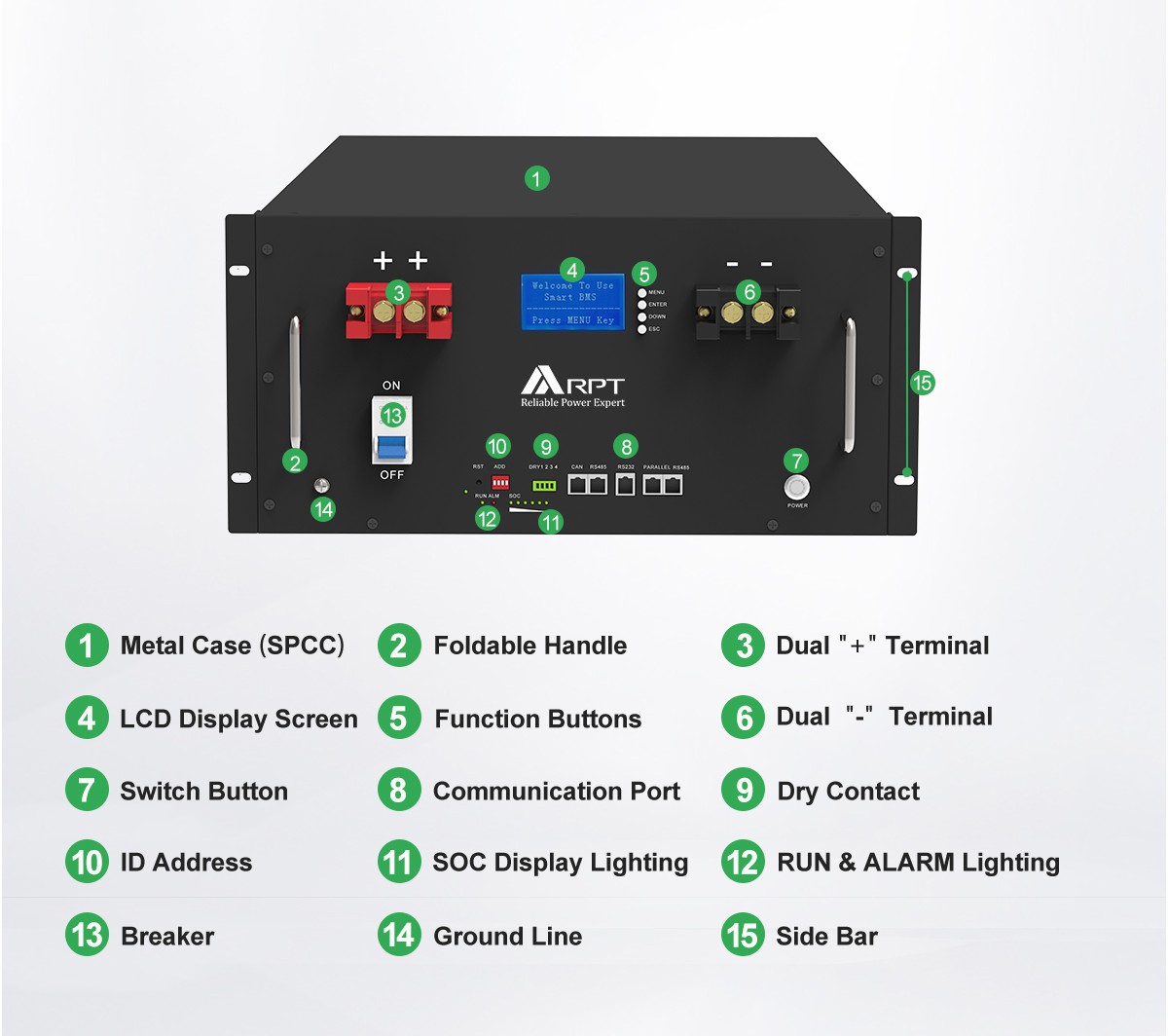

Product Functions

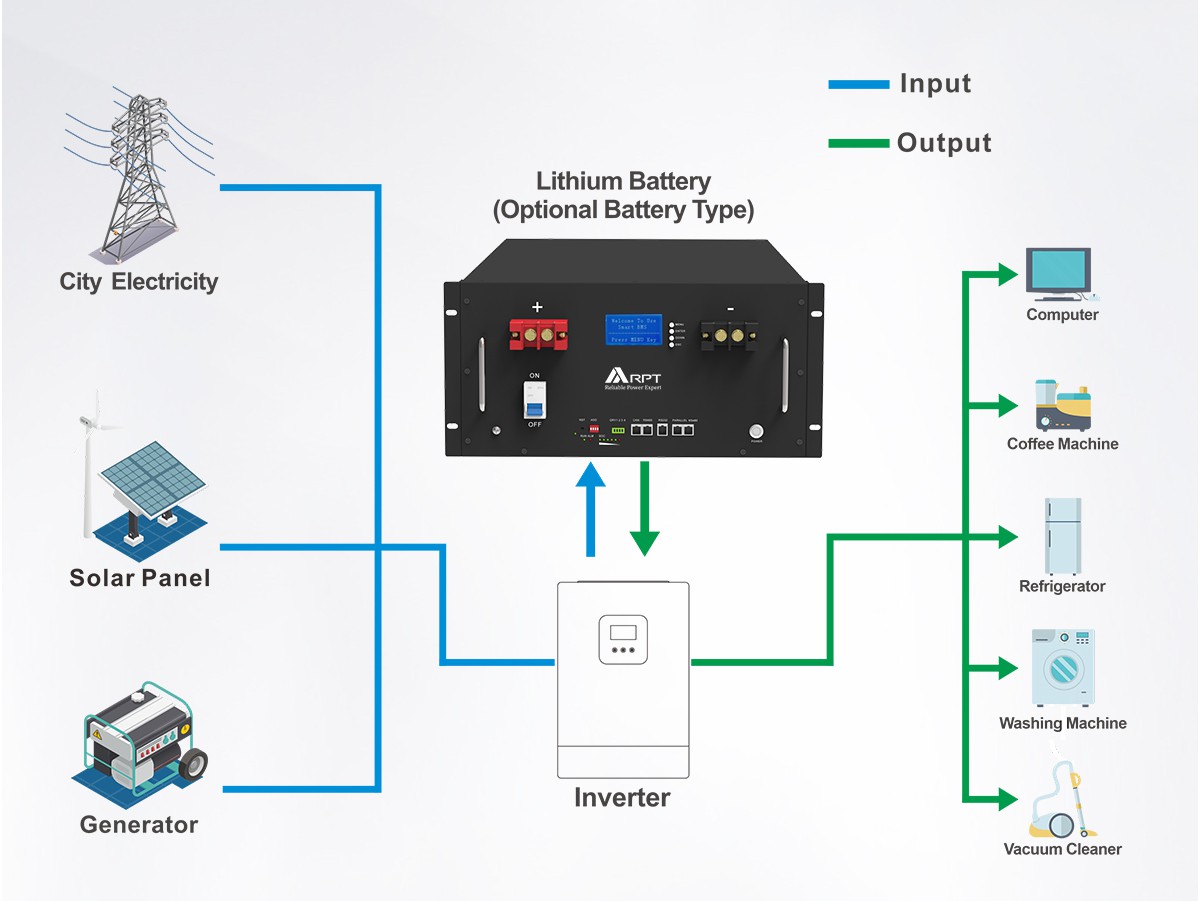

BESS Operation Block Diagram
Compatible Inverter Brands
